Bosch HC8516 Review

Drilling large-diameter holes through reinforced concrete, brick, or block is one of the most demanding tasks a rotary hammer faces. Standard twist drill bits struggle beyond about 25 mm — the torque required increases dramatically and the bit is prone to binding. This is where a core bit comes into its own. Instead of removing all the material within the hole, a core bit cuts only the circumference, leaving a central core that breaks out afterwards. This dramatically reduces the power needed, making it possible to drill holes of 50 mm, 75 mm, or larger with a handheld rotary hammer rather than a dedicated diamond core drill. For plumbers running waste pipes through walls, electricians creating cable penetrations, and HVAC installers routing ductwork, a quality SDS-Max core bit turns an all-day struggle into minutes per hole. When the bit is made from tungsten carbide with an integrated shank, power transmission is direct and efficient, maximising the impact energy that reaches the cutting edge.

Choosing a core bit for an SDS-Max rotary hammer means matching the bit diameter to your hole requirement and ensuring your hammer has enough impact energy to drive it efficiently. The Bosch HC8516 is a 57 mm (2.25-inch) diameter core bit with a 300 mm (12-inch) overall length, designed for use with SDS-Max rotary hammers. The cutting tip is tungsten carbide with a wave-pattern design that Bosch uses to improve cutting speed and debris clearance. The SDS-Max shank is integrated into the bit body — there is no separate pilot drill or adapter — which provides direct power transmission from the hammer's piston to the cutting edge. Bosch manufactures this bit in Germany, and while it has only 18 customer reviews, the 3.9 out of 5 star average suggests generally positive real-world performance. The key consideration when using a core bit of this size is having a rotary hammer with sufficient impact energy — typically 8 joules or more — to drive it effectively through reinforced concrete.

This review examines the Bosch HC8516 SDS-Max core bit — a 57 mm tungsten carbide core bit for drilling large-diameter penetrations through masonry. We cover the cutting performance you can expect, the hammer requirements for effective use, and the applications where a core bit of this size is the right tool for the job. We also honestly discuss the limitations — because core bits in this class are specialised tools with specific requirements that are not always obvious to first-time users. Whether you are a plumber, electrician, or builder facing a wall that needs a 57 mm hole through it, this review helps you understand what this core bit can deliver.

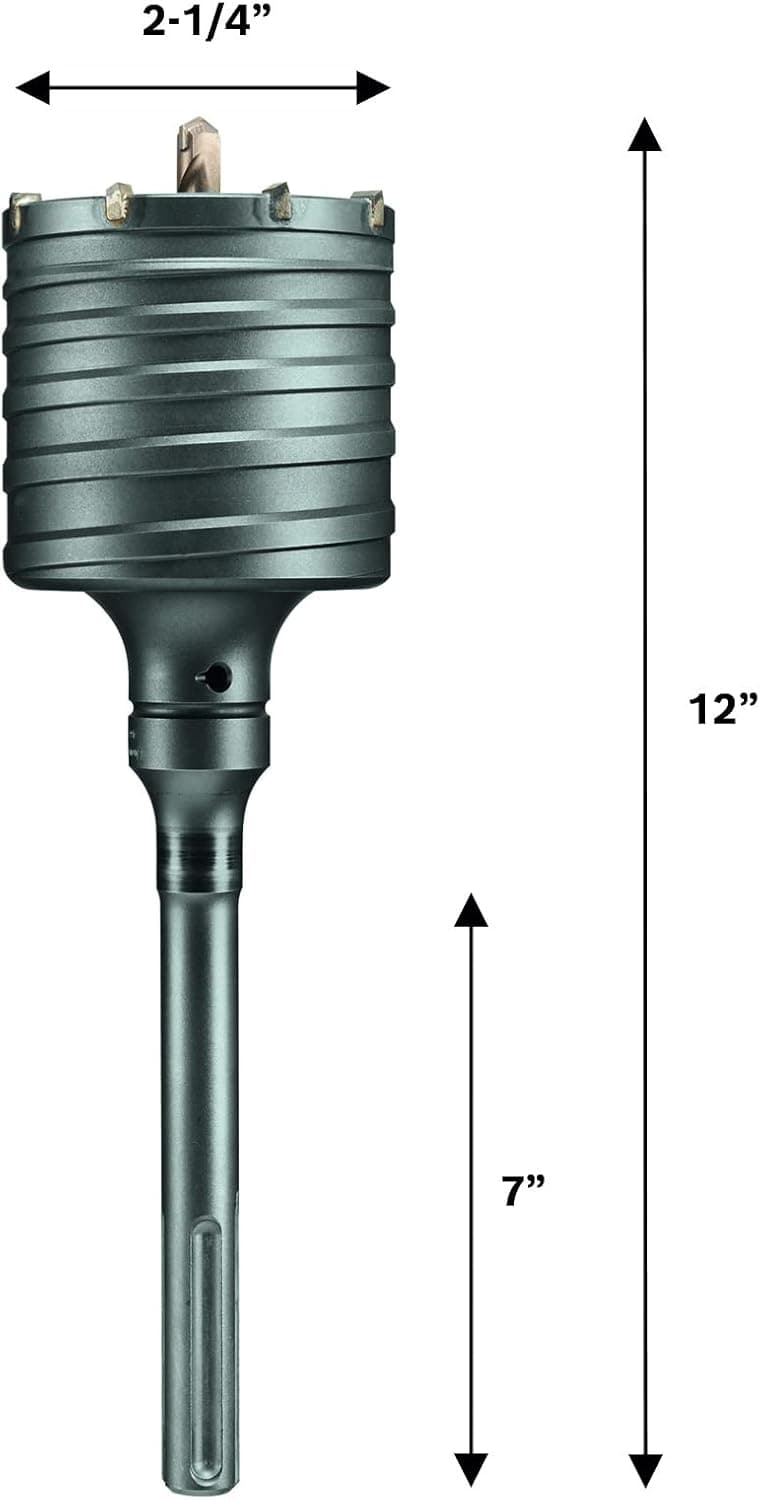

The Bosch HC8516 is a single-piece SDS-Max core bit with a cutting diameter of approximately 57 mm (2.25 inches) and an overall length of about 300 mm (12 inches). The cutting depth capacity is approximately 67 mm (2.63 inches), meaning it can drill through a standard brick or block wall in a single pass from one side — though for thicker walls you would drill from both sides or use the core to break through after reaching maximum depth. The cutting edges are tungsten carbide brazed onto the steel body, arranged in a wave pattern that Bosch calls their 'wave design' — the irregular cutting edge reduces the contact area at any given moment, which concentrates the impact force and improves cutting speed in hard materials.

The integrated SDS-Max shank is a key design feature. Unlike some core bit systems that use a separate pilot drill and adapter, the HC8516 has the shank machined directly into the bit body. This eliminates the potential play that can develop between a separate adapter and the bit, and it ensures that the full impact energy from the hammer's piston is transferred to the cutting edge rather than being lost through adapter connections. The SDS-Max shank is the larger 18 mm standard compared to the 10 mm SDS-Plus, designed specifically for the higher impact energies of heavy rotary hammers. This bit requires an SDS-Max rotary hammer — it will not fit SDS-Plus chucks.

The 57 mm diameter is a common size for several important applications: it is the correct diameter for 50 mm waste pipe penetrations (allowing a few millimetres of clearance around the pipe), it works for 50 mm cable duct entry points, and it is suitable for boiler flue holes and extractor fan ducts. The wave-pattern cutting edge is designed to improve performance in reinforced concrete — when the bit encounters rebar, the staggered cutting edges are less likely to snag and stall than a continuous cutting edge, though carbide core bits are not designed to cut through rebar (diamond core bits are better suited for that). The bit produces a relatively clean hole, though some chipping around the exit side is normal with any rotary hammer core bit.

Using this core bit effectively requires a rotary hammer with sufficient impact energy. Bosch recommends a minimum of 8 joules for core bits in this diameter range — tools like the Bosch GBH 12-52 DV or equivalent SDS-Max hammers from other manufacturers. Lighter SDS-Max hammers in the 5–6 joule range will struggle, producing slow progress and excessive heat buildup that can damage both the bit and the hammer. The technique is important: start the hole at a moderate speed to establish the groove, then increase to full speed once the bit is tracking. Withdraw the bit periodically to clear dust from the groove — packed dust is the enemy of core bit performance. Do not apply excessive pressure; let the hammer's impact mechanism do the work.

The bit weighs approximately 0.92 kg (2.02 pounds), manufactured in Germany, and carries a 3.9 out of 5 star average from 18 customer reviews. At approximately €123 for a single bit, it represents a significant investment for what is ultimately a consumable item — the carbide cutting edges will eventually wear, especially when used in hard concrete or abrasive block. However, for professionals who regularly need to drill 57 mm penetrations, a quality core bit pays for itself in the time saved versus alternative methods. The bit's service life depends heavily on the materials being drilled and the operator's technique — expect dozens to hundreds of holes in standard brick and block, fewer in high-strength reinforced concrete.

The Bosch HC8516 57 mm SDS-Max core bit is best suited for professional plumbers, electricians, and HVAC installers who regularly need to drill large-diameter penetrations through masonry walls and have access to a suitably powerful SDS-Max rotary hammer (8+ joules).
